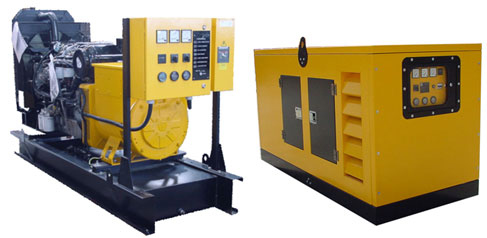

Generator > PT 100 KVA« Back to Generators Main Page
The ratings represent the Engine capabilities within - + 5% at NTP conditions equivalent to those specified in ISO3046,BS5514,DIN 6271, and subject to duration under extreme environmental conditions .
Perkins multi cylinder, 4 stroke, water cooled diesel engine complete with electric starter, starter solenoid relay, battery charge alternator replaceable fuel, oil and air filters, primary water separator, fuel lift pump, sensors connection for low lub oil pressure, high coolant temperature, sump drain tap, loose supplied industrial exh. silencer.
Set mounted tropical radiator core design suitable for 50oc max T° air inlet with engine driven cooling fan and fan guard.
Heavy duty lead acid batteries complete with battery rack and connecting cables.
Leroy Somer, single bearing, brushless, synchronous, self excited, self regulated, screen protected, drip proof enclosure IP21 and IP23 temperature rise class H, and insulation class H. -Line to line voltage wave form distortion is < 3%.
Engine and alternator are directly coupled through disc coupling.
Set mounted on heavy duty steel base frame with anti-vibration oil proof Rubber mounts between gen-set & base.
Separate daily fuel tank can be supplied loose as an option complete with filler cap & drain plug and fuel indicator
Set mounted control panel complete with one AC ammeter with selector switch, frequency meter, hour run meter, one AC voltmeter with selector switch, electrical oil pressure gauge, water temperature gauge, battery voltmeter manual key start, automatic shutdown device with indication lamps for LOP/HWT, molded case circuit breaker.
Each genset is extensively inspected and tested under full load conditions prior to dispatch.
The diesel engine comes with original black, the alternator with original yellow, the base in black, control panel & circuit breaker enclosure in yellow.
Instruction manuals for the Engine/Alternator as well as use and maintenance of the generating set supplied with each unit.
